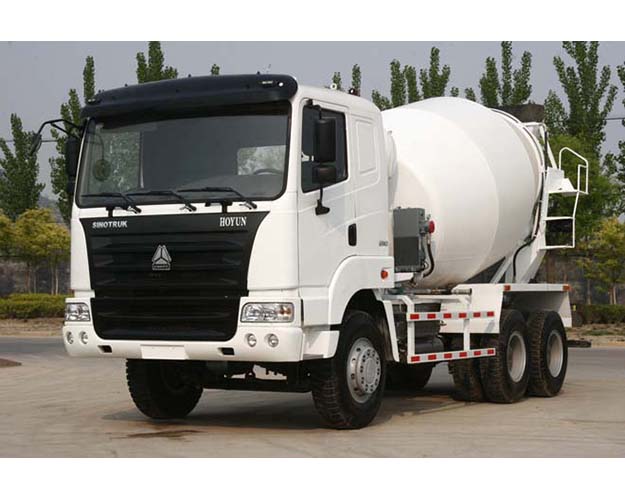

Hao yun 6 x4

Current position ：First page > Product display > Concrete mixer truck > Hao yun

Concrete mixing truck loading key features:
Using advanced foreign technology, after more than ten years of technology to improve the function of the make the product more perfect, more reliable quality, it is more convenient to use.
The characteristics of low inside the tank, the double helix blade, moderate density, taper increase before a goal kick type symmetric stirring plate, jar equipped with double vane and guide vane of discharge, use material more even, faster.
Characteristics of low 2, tanks by pioneering submerged arc welding technology, the domestic strength more solid appearance more beautiful, the connection parts of tank to prolong the service life of the lap joint structure, head cold spinning technology in Germany, sleek and beautiful, equipped with six pieces of reinforcing plate within the head, the wear-resisting performance is stronger.
Characteristics of low 3, mix the cone Angle is low, prolongs the service life of the hydraulic pump, motor, reducer, vice beam with high strength pipe, is equipped with vibration in central area, the vehicle capacity and the traffic is bad when stress release in time, reduce vehicle weight running more smoothly.
Low characteristics of 4, blade made of more than 20 sets of mould, and ensures that the spiral curve and spiral Angle and screw pitch, mixing concrete mixing is realized.

The main performance parameters

volume parameter	8 cubic	9 cubic	10cubic	12cubic	14cubic	16cubic
The geometric volume (m³)	13.5	14.5	16.5	19.5	21.65	23.5
Nominal mixing volume (m³)	8	9	10	12	14	16
Mixing drum speed (r/min)	0-16	0-16	0-16	0-16	0-16	0-16
Mixing Angle (°)	13.5	13.5	11	10	10	10
The tank volume (L)	400	400	400	400	400	400
Discharging rate of residual （%）	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5
Hopper maximum size (mm)	980	980	980	980	980	980
chassis	Hao yun B32 chassis	Hao yun B36 chassis	Hao yun B38 chassis	Hao yun B40 chassis	Hao yun B32 chassis	Hao yun B36 chassis
