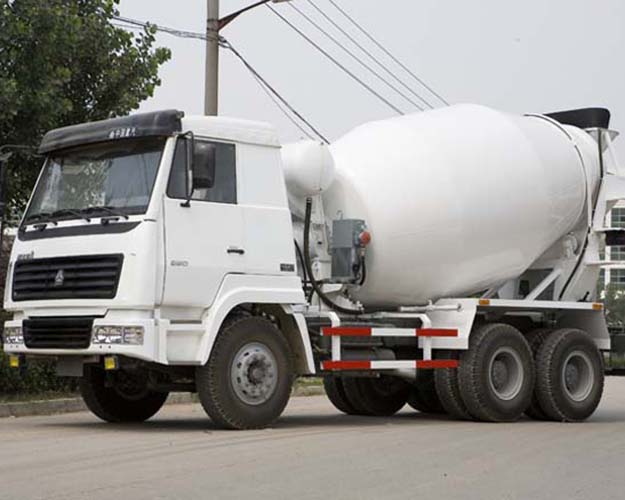

Steyr king 6 x4

Current position ：First page > Product display > Concrete mixer truck > Steyr king

Concrete mixing truck loading key features:
Using advanced foreign technology, after more than ten years of technology to improve the function of the make the product more perfect, more reliable quality, it is more convenient to use.
The characteristics of low inside the tank, the double helix blade, moderate density, taper increase before a goal kick type symmetric stirring plate, jar equipped with double vane and guide vane of discharge, use material more even, faster, and
Convenient other devices (such as car pump) pump.
Characteristics of low 2, tanks by pioneering submerged arc welding technology, the domestic strength more solid appearance more beautiful, the connection parts of tank to prolong the service life of the lap joint structure, head cold spinning technology in Germany,
Sleek and beautiful, with six pieces of reinforcing plate within the head, the wear-resisting performance is stronger.
Low characteristic 3, mix cone Angle is low, prolongs the service life of the hydraulic pump, motor, reducer, vice beam with high strength pipe, is equipped with vibration in central area, the vehicle capacity and the traffic is bad when stress release in time,
Lower the vehicle center of gravity travel more smoothly.
Low characteristic 4, blade made of more than 20 sets of mould, and ensures that the spiral curve and spiral Angle and screw pitch, the mixing concrete mixing, is the real 3 d mixing.

The main performance parameters

The serial number	project	unit	The numerical
1	Product model		ZZ5256GJBM3846F
2	Chassis models		ZZ1256M3846F
3	Overall dimensions Long * wide * high	mm	9100×2496×3780
4	Overall dimensions Long * wide * high	mm	9100×2496×3780
5	The largest volume	m3	10
6	The wheelbase	mm	3800+1350
7	Before hanging/suspension	mm	1560/2390
8	The total quality	kg	25000
9	The rated load quality	kg	11720
10	Curb weight	kg	13150
11	Announcement of the batch		A6
12	3 c status		through
13	Environmental conditions		through
14	Characteristic advantage		Fuel efficiency, reasonable structure, high cost performance, safe and reliable.
