The serial number
|
project
|
unit
|
The numerical
|
|
1
|

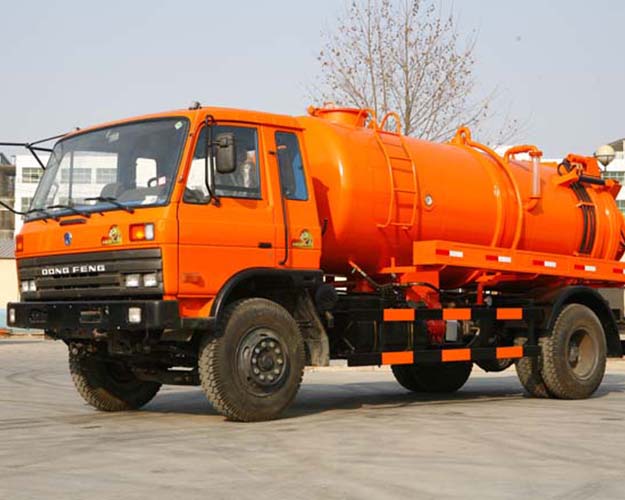

The vehicle model
|
JHL5101GXW
|
|
|
2
|
Chassis brand
|
dongfeng
|
|
|
3
|
Chassis models
|
EQ1108KJ
|
|
|
4
|
The engine horsepower
|
ps
|
160
|
|
5
|
The vehicle shape size (length * width * height)
|
mm
|
6975*2462*2950
|
|
6
|
Effective volume of tank
|
m3
|
5
|
|
7
|
Pump suction diameter
|
mm
|
100
|
|
8
|
The depth of the suction
|
m
|
≧8
|
|
9
|
Tank lifting Angle
|
。
|
30
|
|
10
|
After the tank door opening Angle
|
。
|
60
|
|
11
|
Performance and application of
|
1, car engine as power source, match with the inlet vane vacuum pump, hydraulic pump, hydraulic motor, shipment is mainly used for industrial hazardous waste liquid, city sanitation drainage and liquid waste, such as the construction of sludge for the drain mud suction, the loading and discharge, especially can suck the sewer in the stones, bricks and other large objects. 2, adopts vacuum suction and discharge pressure method, can greatly shorten the handling time, improve the work efficiency of the vehicle pollution car has a hydraulic lift dump functions, easy to dump all kinds of sludge is clean. And after the tank can be hydraulic automatic door open, easy to clean up the tanks in the sediment, concretion and tanks internally for repair and maintenance. Is the preferred product in the field of municipal engineering and sanitation engineering. |
|
|
12
|
Product advantage
|
1, adopts hydraulic drive, compact structure, reliable, stability is strong. 2, the car has low work load, high volume rate, depth of suction, loading and unloading speed is quick, flush the dredge the advantage with good effect. |
|
