Derrick move lost car, lorry crane

Current position ：First page > Product display > Derrick truck

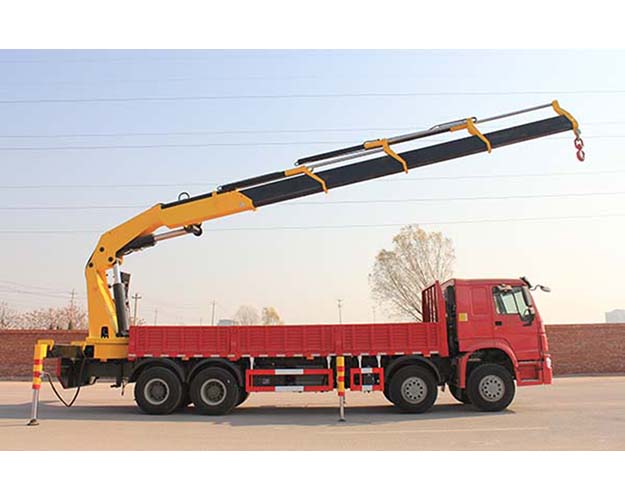

Derrick truck, widely used in all kinds of loading and unloading, and installation of lifting operation, especially applicable to the field of overweight, emergency operation and at the station, port, warehouse, construction sites and other places of narrow homework. Adopting the imported hydraulic pump, valve and other hydraulic components, lock products micro sex, to ensure safety and durability; Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance; Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality turn back to support and speed reducer, make the action more supple and smooth. Can choose different length according to customer demand, tonnage of cargo van or crane. The vehicle with large power and high speed, strong climbing ability, high hoisting height, wide operation point; With flexible, efficient, energy saving, safe and reliable, etc.

project	JHL5317JSQN46ZZ	JHL5047JSQD34ZZ
The total quality （Kg）	31000	4495
Curb weight （Kg）	23000，22800	3010
Chassis models	ZZ1317N4667D1	ZZ1047D3414D145
The vehicle shape size（mm）	1198025003800	599521502810，2930
Internal size cargo van （mm）	7630，77602300，2380400，600	3620，34002050400，450，500
The wheelbase （mm）	1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400	3360
Before hanging/suspension （mm）	1500/2730,1500/2705,1500/2380,1500/2355	1160/1475
Tire size	12R22.5,295/80R22.5	7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 6PR
Model/engine power （KW）	D10.34-40/249	MC07.28-40/203 MC07.31-40/225
Emission standards	countries IV	countries IV
Drive form	8*4	4х2
Maximum lifting weight （Kg）	30000	2280
The basic arm arm length (mm)	2540	1380
All the main arm arm length (mm)	11500	3200
The basic arm maximum lifting height (mm)	14400	3620
All the main arm maximum lifting height (mm)	18000	5420
Leg lateral span (left/right) (mm)	2250-6160	5420
Rotary form	Rotary,	Rotary,
